Automatic Centering Power Vise

PV Series

Automatic Centering Power Vise
PV
E-CATALOG ADD TO INQUIRY
Specification
-Specialized for 5-axis CNC milling machines.
-Perfect symmetry and stability clamping performance.
-Suitable for high-precision components and complex surface machining.
Spec. \ ModelPV-160
Jaw Stroke
(mm)		3
Clamping Force
(kN)		45
Max. Pressure
Mpa (kgf/cm²)		0.9 (9.1)
Repeat Accuracy
(mm)		0.02
Max. Jaw Height
(mm)		60
Closing/opening Time
(sec.)		0.4
Weight
(kg)		10

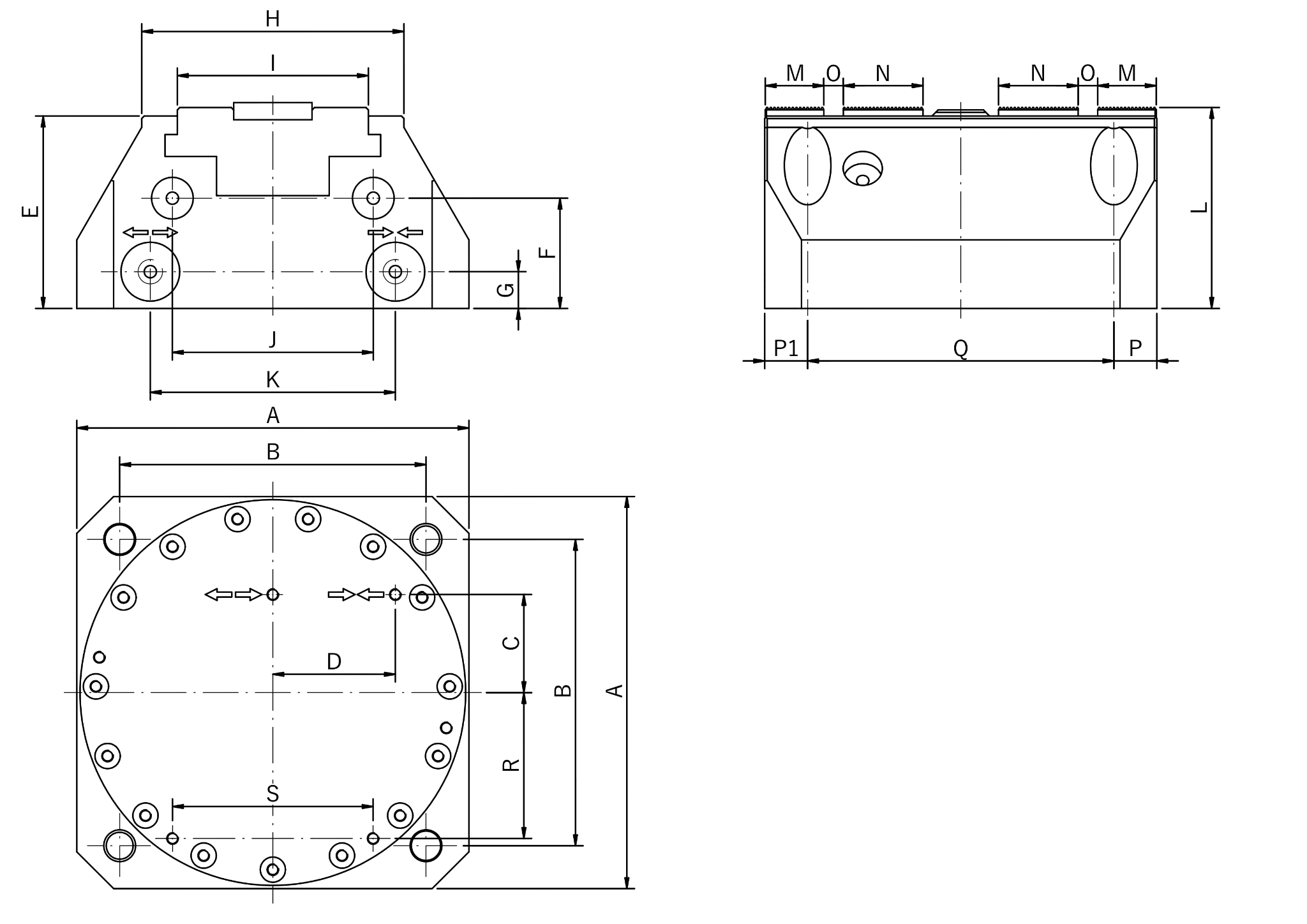

Dimensions
Spec. \ ModelPV-160
A160
B125
C40
D50
E78.5
F45
G15
H107
I78
J82
K100
L82
M23.9
N32.5
O8
P17.5
Q125
R59.54
S81.85
