| Spec. \ Model | TF3C-6A5 | TF3C-8A6 | TF3X-10A8 | TF3X-12A8 | TF3X-12A11 |
|---|---|---|---|---|---|
| Through Hole Diameter (mm) | 52 | 66 | 78 | 110 | 110 |
| Jaw Stroke (Dia.) (mm) | 5.5 | 7.4 | 8.8 | 10.6 | 10.6 |
| Plunger Stroke (mm) | 12 | 17 | 19 | 23 | 23 |
| Max. Rotation Speed (r.p.m.) | 6000 | 5000 | 4200 | 3300 | 3300 |
| Max. Draw Bar Pull Force (kgf) | 2200 | 3400 | 4300 | 5500 | 5500 |
| Max. Clamping Force (kgf) | 5700 | 8700 | 11000 | 14300 | 14300 |
| Max. Pressure of Hydraulic Cylinder (kgf/cm²) | 18 | 18 | 27.5 | 19.5 | 19.5 |
| Weight (KG) | 14.2 | 24.5 | 37.4 | 61 | 61 |
| Matching Hydraulic Cylinder | RC-6 | RC-8 | RC-10 | RC-12 | RC-12 |
| Matching Soft Jaw | HC-06 | HC-08 | HC-10 | HC-12 | HC-12 |
| Matching Hard Jaw | HJ-06 | HJ-08 | HJ-10 | HJ-12 | HJ-12 |
| Dim \ Model | TF3C-6A5 | TF3C-8A6 | TF3X-10A8 | TF3X-12A8 | TF3X-12A11 |
|---|---|---|---|---|---|
| A | 175 | 215 | 254 | 318 | 318 |
| B | 75 | 108.5 | 113 | 137 | 126 |
| C H6 | 140 | 170 | 220 | 300 | 300 |
| D | 20 | 25 | 30 | 30 | 30 |
| E | 30 | 22.5 | 18 | 33 | 22 |
| F | 82.563 | 106.36 | 139.719 | 139.719 | 196.8 |
| H | 104.78 | 133.4 | 171.45 | 171.45 | 235 |
| J | 16 | 16 | 20 | 20 | 20 |
| K | 6-M10 | 6-M12 | 6-M16 | 6-M20 | 6-M20 |
| L | 52 | 66 | 78 | 110 | 110 |
| M | 5 | 7 | 5 | 6 | 6 |
| N Max | 32 | 46 | 51 | 68 | 68 |
| N Min | 29.25 | 42 | 46.6 | 63 | 63 |
| O Max | 24 | 25.5 | 34.5 | 53.5 | 53.5 |
| O Min | 7.5 | 10.5 | 12 | 19 | 19 |
| P Max | 25 | 12.5 | 26.5 | 37 | 26 |
| P Min | 12.5 | -4.5 | 7.5 | 14 | 3 |
| R | 12 | 14 | 16 | 21 | 21 |
| S | 19 | 25 | 25 | 28 | 28 |
| T | 32 | 37 | 42 | 52 | 52 |
| U Max | M60x2 | M74x2 | M87x2 | M115x2 | M115x2 |
| V | - | - | - | 6-M6 | - |
| W | 66 | 82 | 96 | 127 | 127 |
| X | 16 | 16 | 16 | 20 | 20 |
| Y | 36 | 45 | 60 | 60 | 60 |
| A1 | 65 | 80 | 102 | 140 | 140 |
| M1 | M8 | M8 | M10 | M10 | M10 |
| t | 5 | 5 | 5 | 5 | 5 |

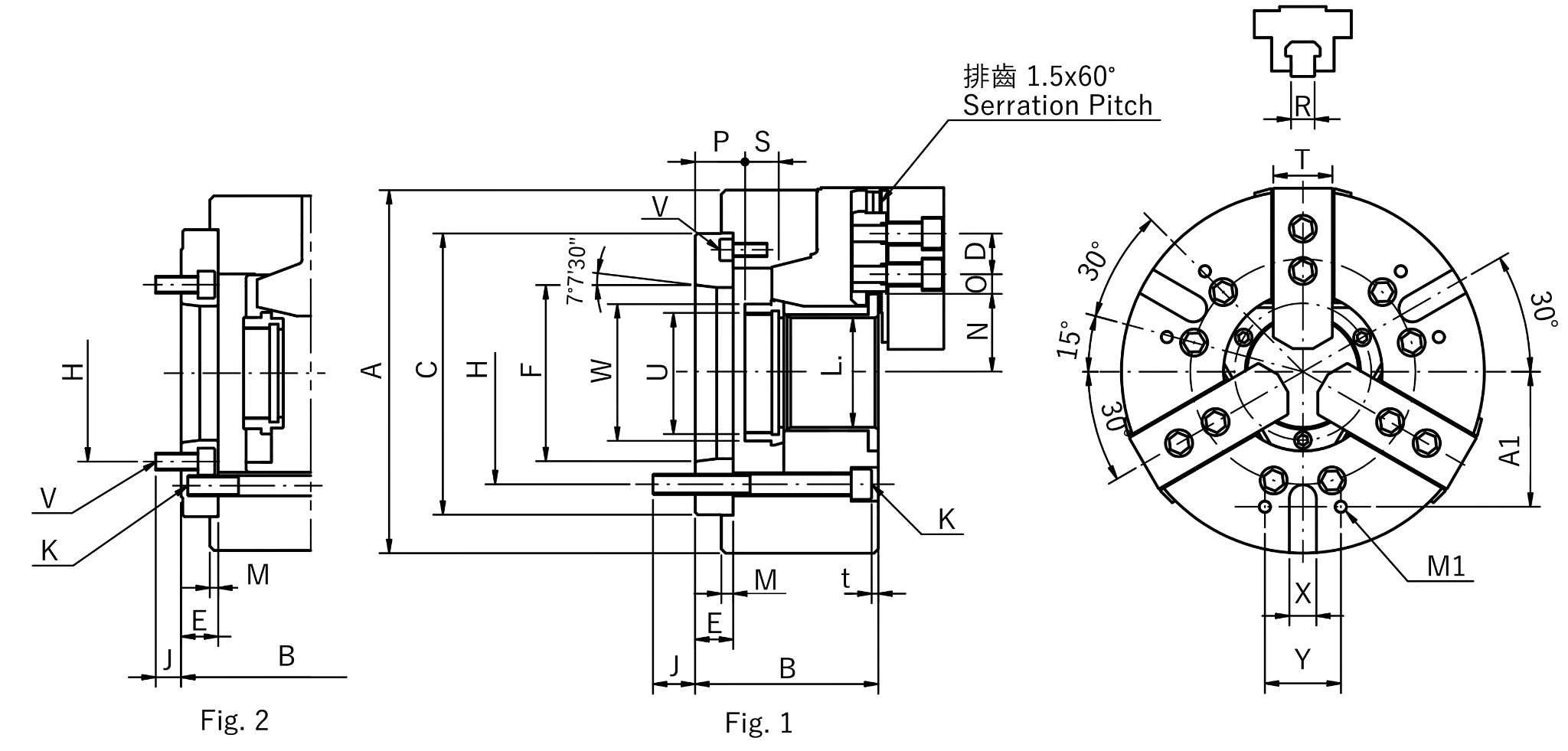

| Ref. Fig. | Fig. 1 | Fig. 1 | Fig. 1 | Fig. 2 | Fig. 1 |
