| Model | 6" DOV | 8" DOV |
|---|---|---|
| Psiton Dia. (mm) | Φ115 | Φ155 |
| Effective Piston Area Push Side (cm²) | 104 | 187 |
| Effective Piston Area Pull Side (cm²) | 78.5 | 148.6 |
| Piston Stroke (mm) | 20 | 17 |
| Max. Draw Bar Pull Push Side (kgf) | 1900 | 3600 |
| Max. Draw Bar Pull Pull Side (kgf) | 1400 | 2800 |
| Weight (kg) | 12 | 21 |
| Max. Operating Pressure (kgf/cm²) | 20 | 20 |
| Matching Chuck | TF3B-6 / V-206 | TF3B-8 / V-208 TF3B-10 / V-210 |

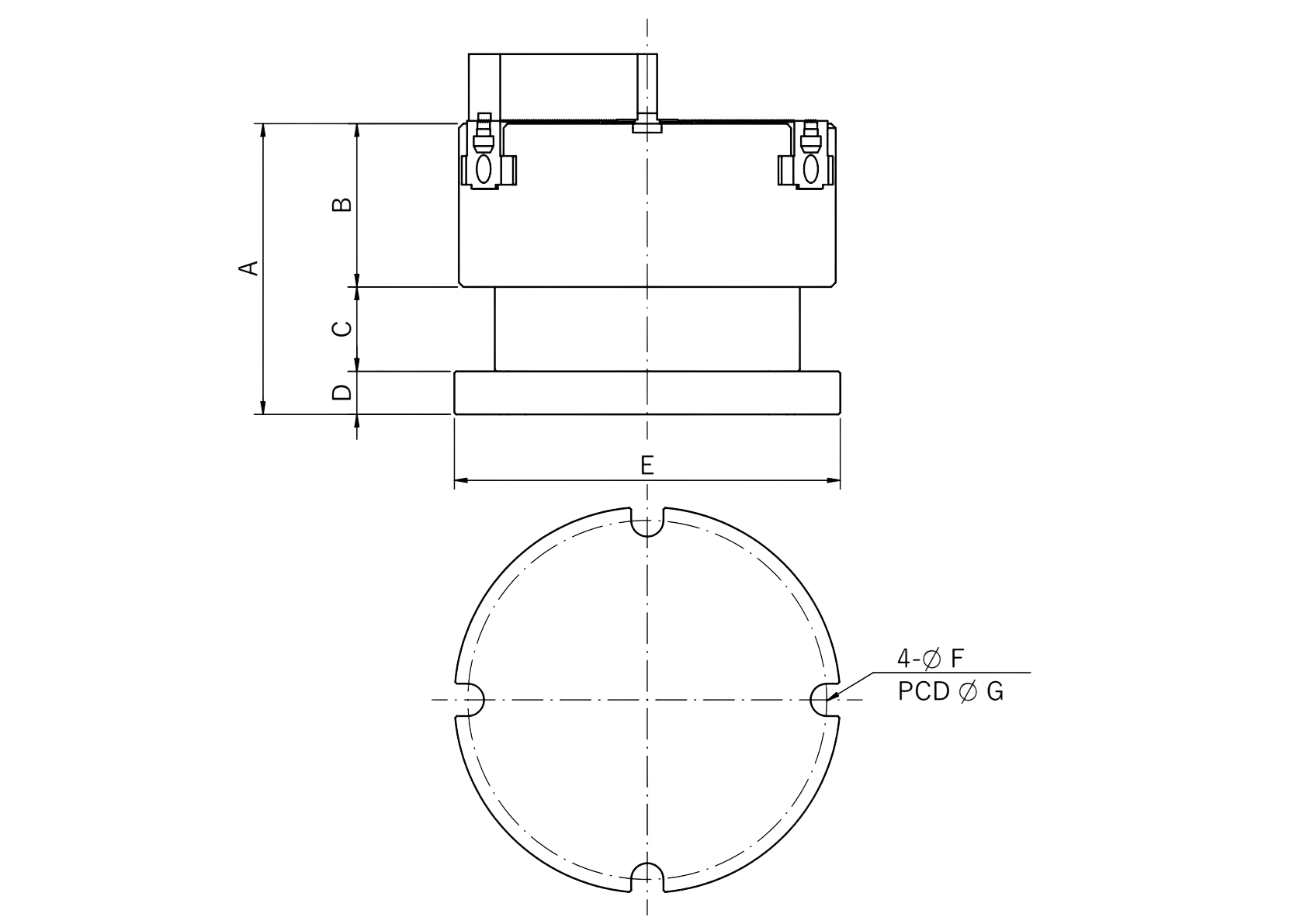

| Model | 6" DOV | 8" DOV |
|---|---|---|
| A | 156 | 163 |
| B | 81 | 92 |
| C | 51 | 47 |
| D | 24 | 24 |
| E | 170 | 215 |
| F | 17 | 17 |
| G | 150 | 200 |
