German standard DIN 6343.
Made of high-elasticity steel.
Customized inner diameter and shape(circular, square or hexagonal)
Made of high-elasticity steel.
Customized inner diameter and shape(circular, square or hexagonal)
Specification

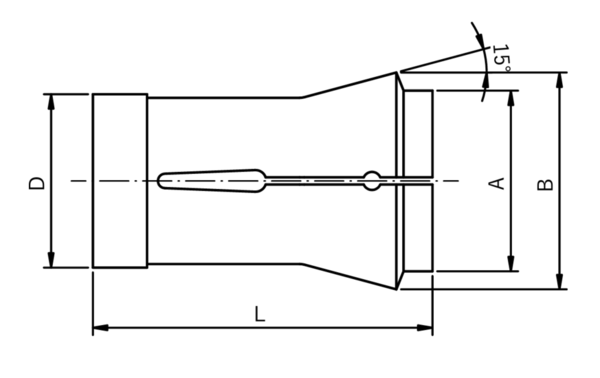

Dimensions
| Dim / Model | 163E | 171E | 173E | 177E | 185E | 193E |
|---|---|---|---|---|---|---|
| A | 39 | 42 | 50 | 60 | 73 | 92 |
| B | 49 | 55 | 60 | 70 | 84 | 107 |
| d | 35 | 42 | 48 | 58 | 66 | 90 |
| L | 80 | 94 | 94 | 94 | 110 | 130 |
| Max. Dia. Round | 30 | 37 | 42 | 52 | 60 | 80 |
| Max. Dia. Hexagonal | 27 | 32 | 36 | 45 | 50 | 68 |
| Max. Dia. Square | 22 | 26 | 28 | 36 | 40 | 55 |
