Specification

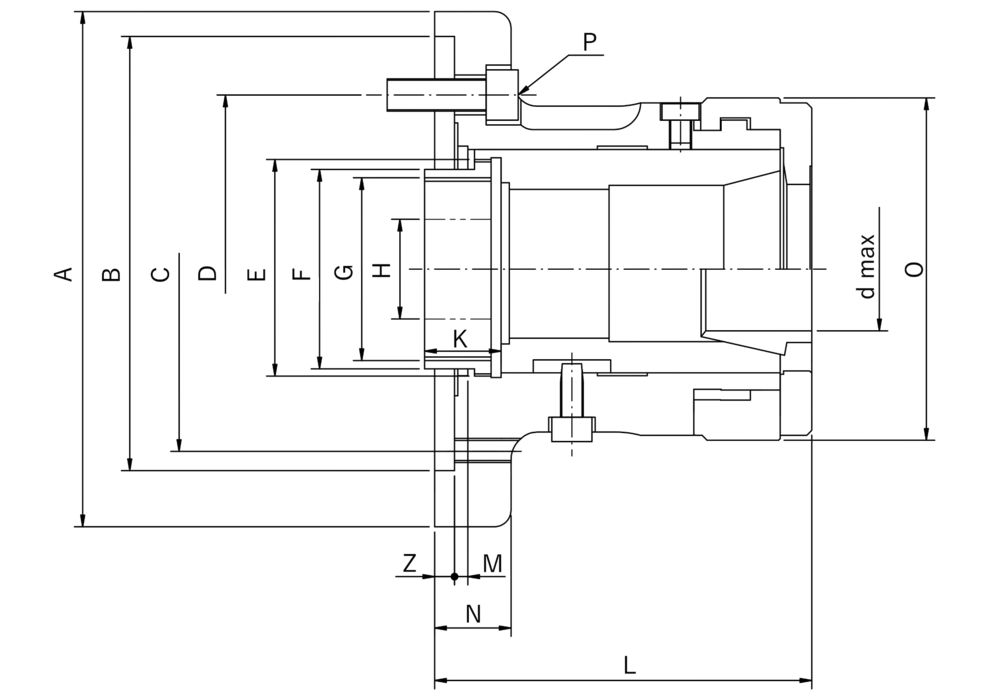

Dimensions
| Dim / Model | CL30-140D | CL42-140D | CL52-170D | CL60-170D | CL80-220D |
|---|---|---|---|---|---|
| Steel Collet | 171E | 173E | 177E | 185E | 193E |
| A | 155 | 155 | 185 | 185 | 235 |
| B | 140 | 140 | 170 | 170 | 220 |
| C | 126 | 126 | 152 | 152 | - |
| D | 104.8 | 104.8 | 133.4 | 133.4 | 171.4 |
| E | M66xP1.5 | M66xP1.5 | M90xP1.5 | M90xP1.5 | M114xP2.0 |
| F | 62 | 62 | 90 | 90 | 108 |
| G | M55xP2 | M55xP2 | M85xP2 | M85xP2 | M100xP2 |
| H | 30 | 30 | 30 | 30 | 30 |
| K | 23 | 23 | 31 | 31 | 31 |
| L | 113.5 | 113.5 | 139 | 139 | 162 |
| M Max. | 5 | 5 | 11 | 11 | |
| M Min. | 0 | 0 | 6 | 6 | |
| d | 36 | 42 | 52 | 60 | 80 |
| O | 103 | 103 | 132 | 132 | 157 |
| N | 23 | 23 | 30 | 30 | 35 |
| P | 4-M10x25 | 4-M10x25 | 4-M12x25 | 4-M12x25 | 4-M16x35 |
| Z | 6 | 6 | 6 | 6 | 6 |
